LEDEAST High Quality Flexible Transparent LED Display for Glass Buliding

Multiple Pixel Pitch Options for Various Needs

To meet different application needs, LEDEAST provides this transparent display series in multiple pixel pitch options: P6, P8, P10, P16, and P20. Each option is suitable for different viewing distances and resolutions:

• P6: High-definition visuals with 27,889 pixels/m²

• P8: Balanced clarity with 15,625 pixels/m²

• P10: Clear and cost-effective with 10,000 pixels/m²

• P16: Wide visibility with 3,906 pixels/m²

• P20: Ideal for large-scale, long-distance viewing with 2,500 pixels/m²

Transparent, Lightweight, and Flexible

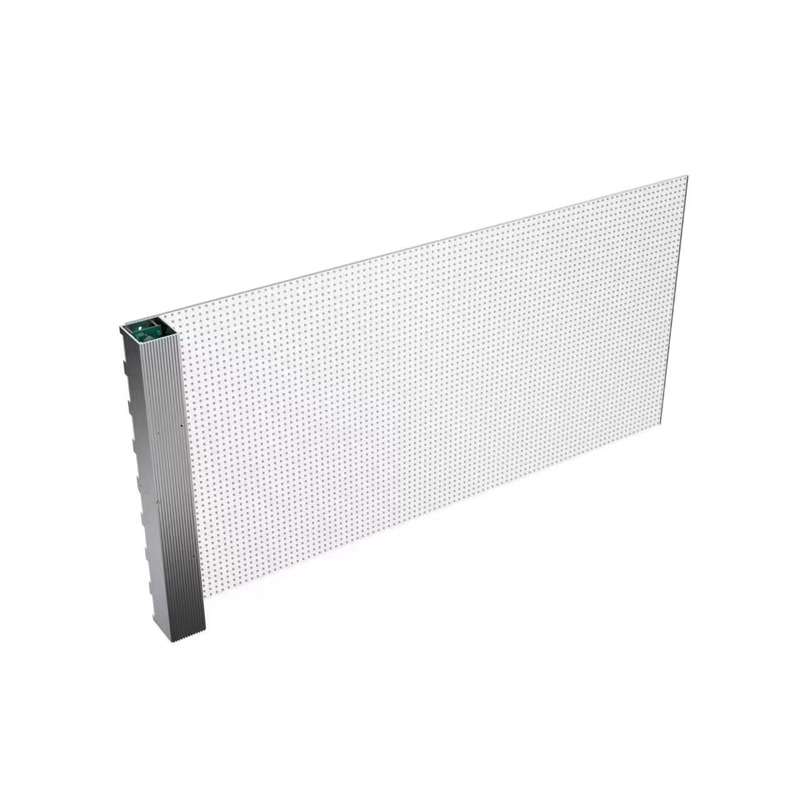

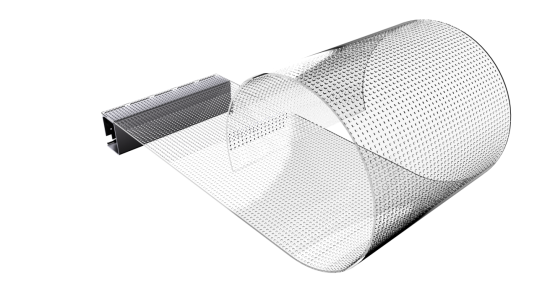

Each LED module is sized at 1000×240mm and is designed with transparency in mind. The flexible frame allows the display to be shaped around curves, corners, and columns, enabling creative installations. Thanks to its transparent design, the display doesn’t block sunlight or the view behind the glass, which keeps indoor environments bright and comfortable. It's the perfect choice for glass curtain walls, high-rise buildings, or any modern architectural space.

Bright and Vivid Visuals

With brightness levels ranging from 2500 to 3500 cd/m², this LED screen ensures excellent visibility even under direct sunlight. The display uses high-quality SMD2121 LEDs, known for their durability and stable performance. Combined with the R1G1B1 pixel structure, this screen delivers rich colors and sharp images, perfect for advertising, branding, or artistic displays.

Wide Viewing Angle

Thanks to its 160° viewing angle, your content will be clearly visible from both the front and sides. Whether installed on a street-facing wall or in a public space with heavy foot traffic, this wide viewing range ensures your message reaches more people.

Stable Power and High Efficiency

The display runs on a wide voltage range of AC110-240V 50/60Hz, making it suitable for global use. It features a peak power consumption of 800W/m² and an average of 240W/m², ensuring energy efficiency without sacrificing brightness and performance. These values help reduce operating costs, making it a smart choice for businesses.

Smooth Visual Experience

With a 16-bit grayscale and a 3840Hz refresh rate, this LED screen offers smooth transitions, reduced flicker, and high-quality video playback. The image quality remains sharp even when captured by cameras, which makes it suitable for live events, media coverage, or promotional videos.

Easy Installation and Maintenance

The modular design allows for quick and flexible installation. Whether you want to install it on a curved surface, a glass wall, or a stage backdrop, the lightweight frame and customizable modules make the process easy and fast. In case of maintenance, individual modules can be replaced without removing the entire screen, saving time and cost.
