0-10V Dimming CW OutPut Low Voltage LED Driver LEDEAST FKS-D0130VA

Short Description:

The 0-10V dimming control protocol allows for smooth and continuous dimming of LED lights by sending a 0-10V signal to the LED driver. The LED driver interprets this signal and adjusts the current output to dim or brighten the LED lights accordingly.

Dimming:0-10VDimming
Input Voltage: DC48V ±3%
Output Voltage: DC3-40V
Output Current: See content on right
Dimming Type: 0-10V dimming
Efficiency: >90%
Power Factor: 1
Working Temp.: -20 ~ +45°C
Working Humidity: 20% ~ 90% RH
Storage Temp.: -20 ~ +70C° Storage Humidity: 10% ~ 90% RH
MTBF: 50000 hours

Send email to us

Product Detail

Product Tags

Specifications

Name	DC48V 0-10V Dimming LED Driver
Supplier	LEDEAST

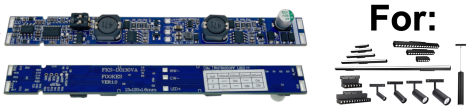

Picture	Size: 131201.6mm
Model	FKS-D0130VA	FKS-D0130V-V1
DC Output Current	Customizable Current: 150/200/250/300/350/400/450/500/550/600/700mA
Dimming	0-10V Dimming
DC Output	DC Voltage: 3-40V DC
	Line Regulation: ±2%
	Load Regulation: ±2%
DC Input	DC Input Voltage Range: 48VDC ±3%
	DC Rated Voltage: 48VDC
	Efficiency: >90%
Protection	Short-circuit: Hiccup mode
	No-load protection
	Negative reverse connect protection
Environment	Working Temp.: -20 ~ +45C°
	Working Humidity: 20 ~ 90% RH, non-condensing
	Storage Temp.: -20 ~ +70C°
	Storage Humidity: 10% ~ 90% RH
Others	IP Rate: IP22
	MTBF: 50000 hours
Warranty	5 Years
