FG20 Magnet Track Linear Diffuser Light
Application
LEDEAST’s FG20 Family Magnetic linear floodlight has a high brightness and efficiency and high CRI, providing a bright and comfortable lighting environment.
The Magnetic linear diffuser light is not only suitable for indoor lighting, but also for display cabinets, galleries, museums, and other occasions to highlight the features and aesthetics of exhibits.
Specifications
LEDEAST’s FG20 family linear diffuser led floodlight has a simple and generous appearance and with four sizes to match different objects, make the decoration of the overall space more unified.
The lamp head of magnetic suction track floodlight use precision optical design, which can emit light in a wider range and achieve a more uniform lighting effect, thus meeting different lighting needs.
| Name | LED Magnet Track Light (Linear diffuse) | |||
| Supplier | LEDEAST | |||
| Model | FG20-300 | FG20-600 | FG20-900 | FG20-1200 |

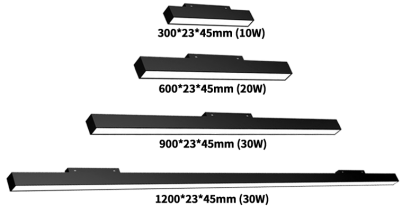

| Picture |  |
|||
| Size | 300*23*45mm | 600*23*45mm | 900*23*45mm | 1200*23*45mm |
| LED & Power | 10W (Ra>90) | 20W (Ra>90) | 30W (Ra>90) | 30W (Ra>90) |
| Beam Angle | 120° Diffuse | |||
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 20000K | |||
| Lumen Efficiency | 70-110 Lm / W | |||
| Input Voltage | DC48V (Customizable DC24V) | |||
| IP Grade | IP20 | |||
| Installation | Compatible with 20# magnetic track rail | |||
| Finish Color | Black / White | |||
| Main Material | High Quality Aluminum | |||
| Heat Dissipating | Behind the COB chip, there is painted with thermal grease with 5.0W/mK heat-conductivity, guarantee a stable thermal conductivity. |
|||
| Light Attenuation | Attenuated 10% during 3 years (Light on 13h/day) | |||
| Failure Rate | Failure Rate < 2% during 3 years | |||
| Other | Brand LOGO on the product can be specified. Normally, the product is NON-Dimming version. Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee / 2.4G Remote Dimming (or Dimming & CCT Adjustable) |
|||
| Certificate | CB / CE / RoHS | |||
| Warranty | 3 Years | |||
Customization
1) Usually, it come with Black and white finish color, other finish colors also be customizable, such as gray/silvery.

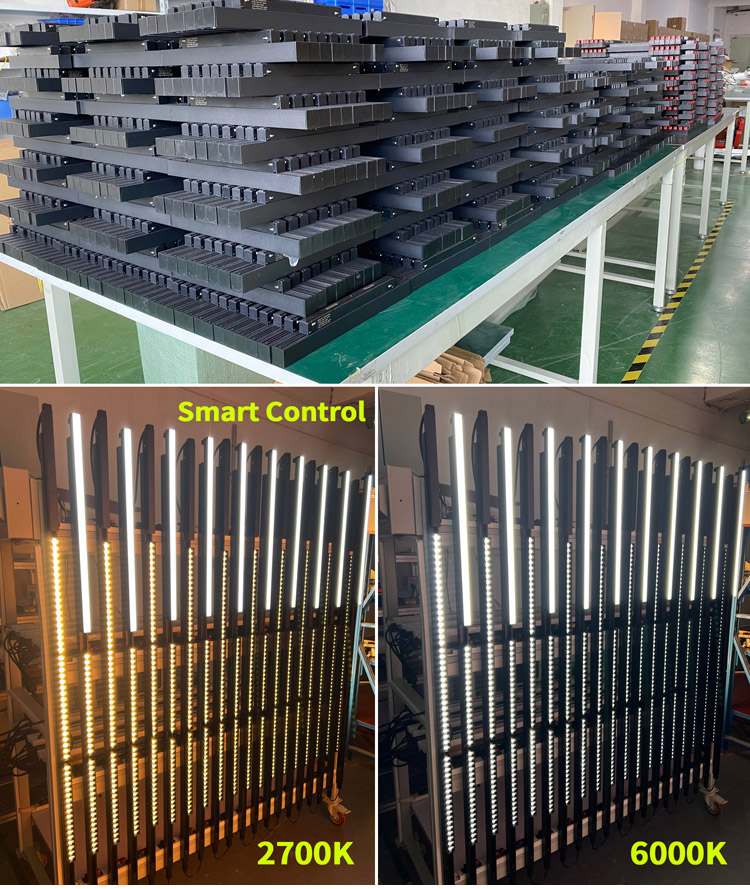

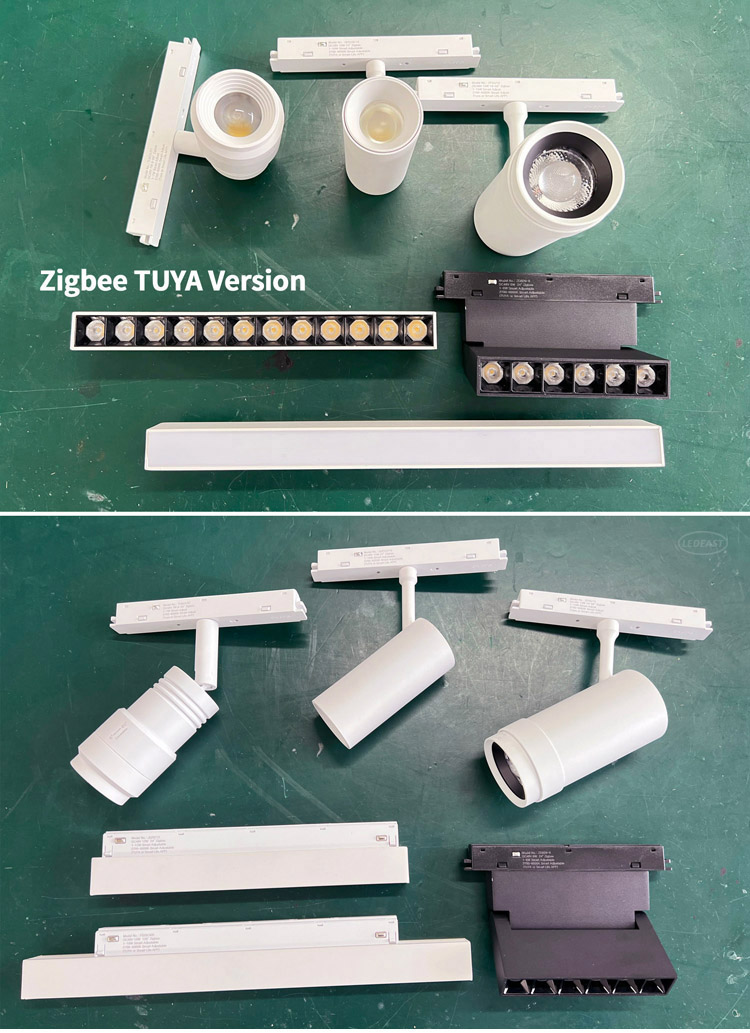

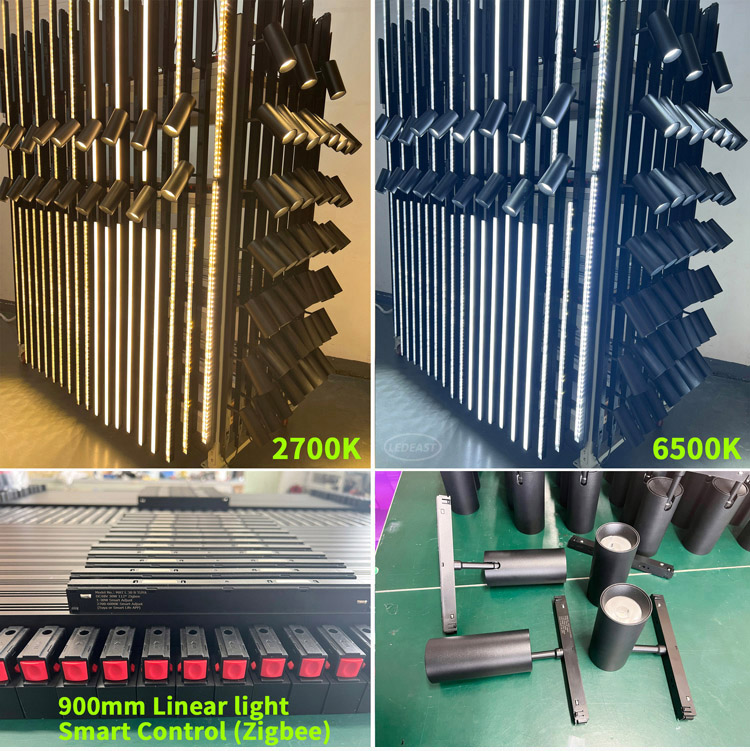

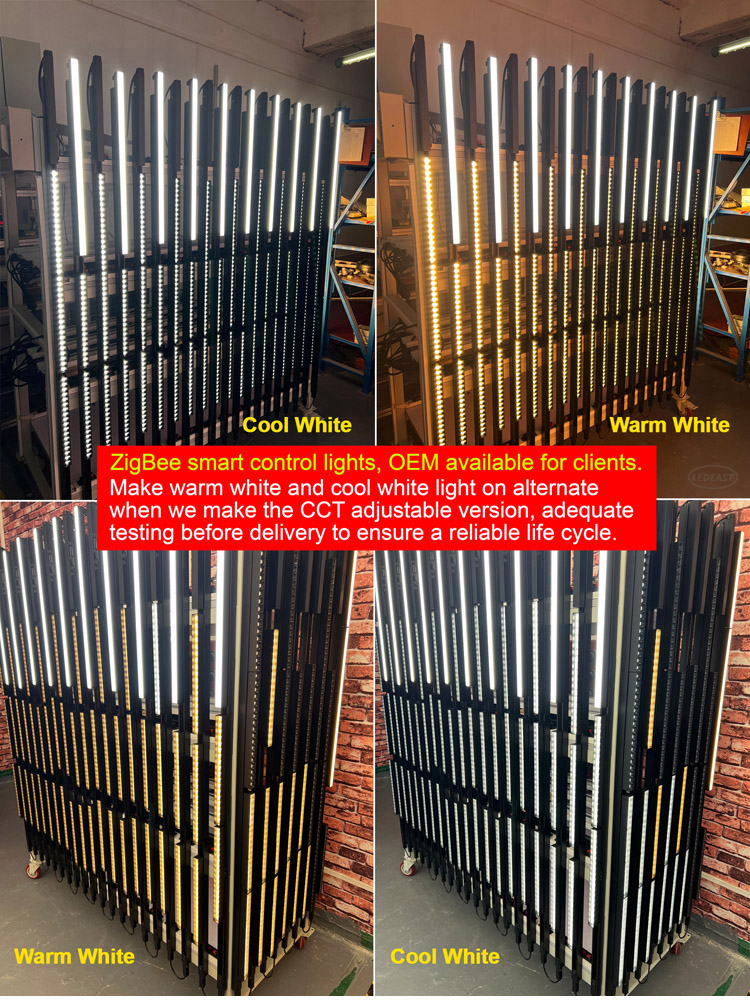

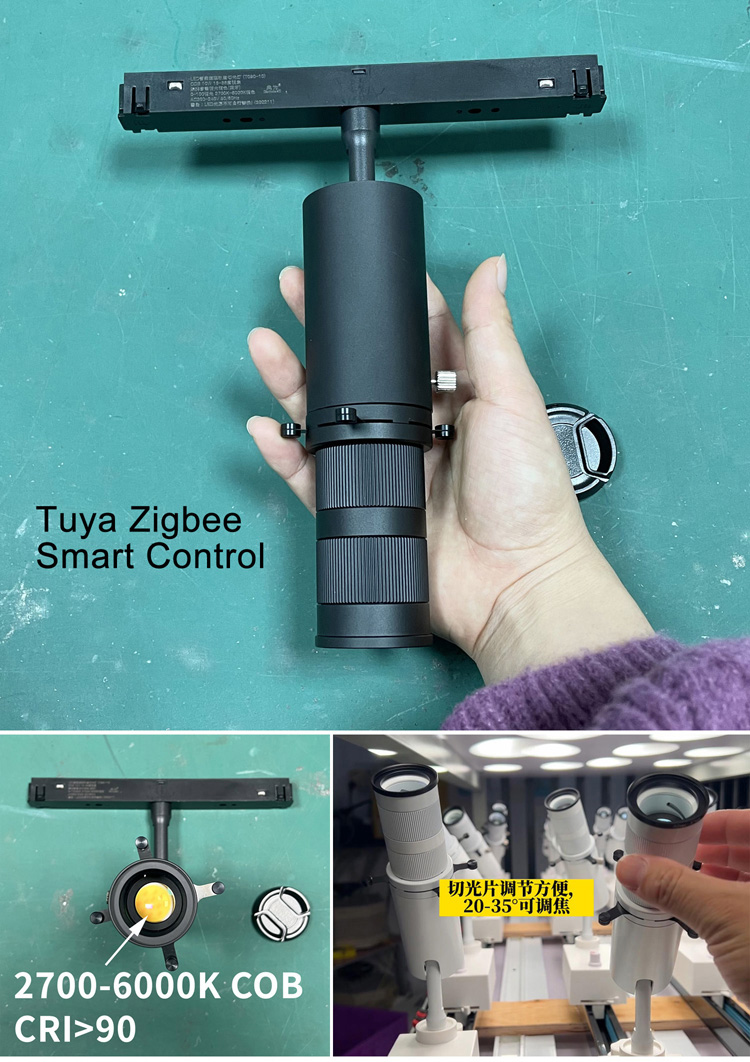

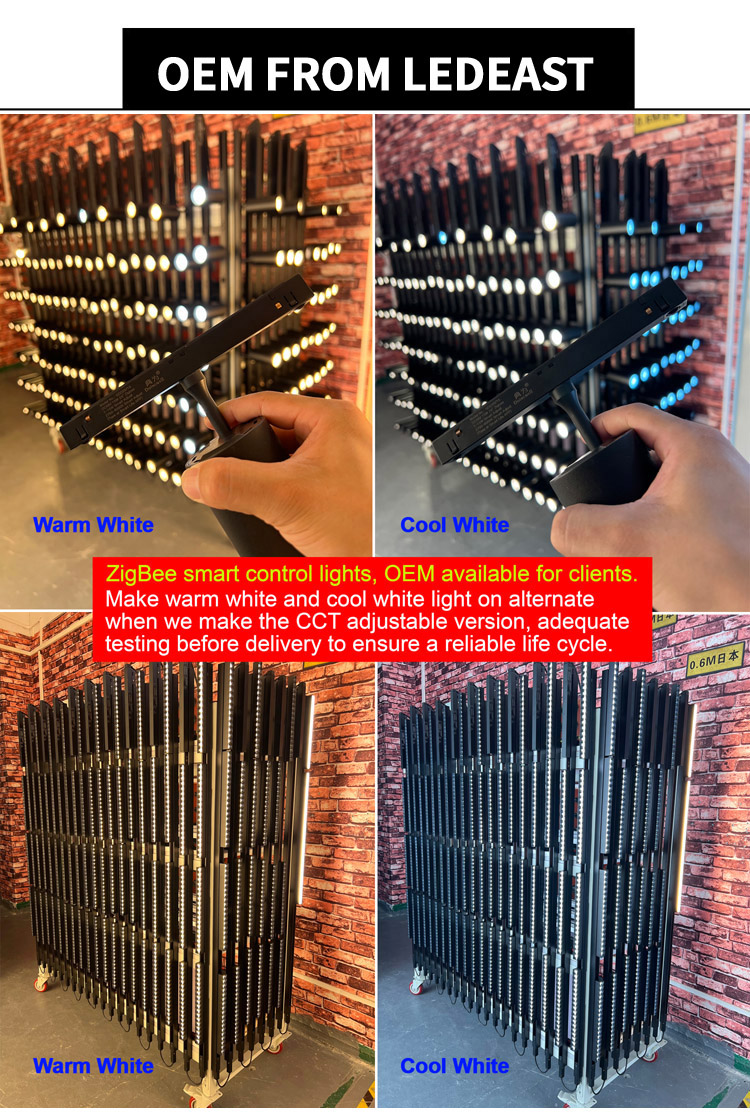

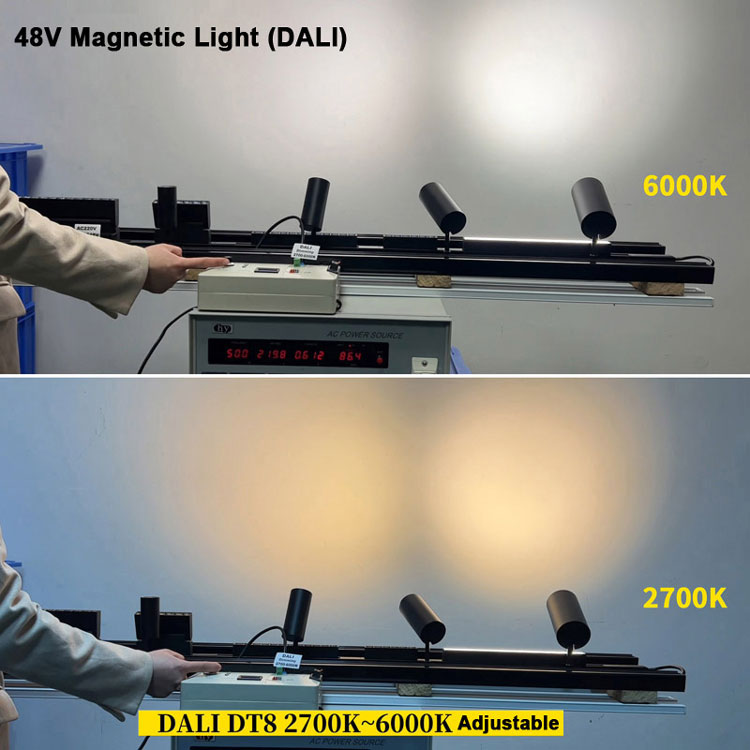

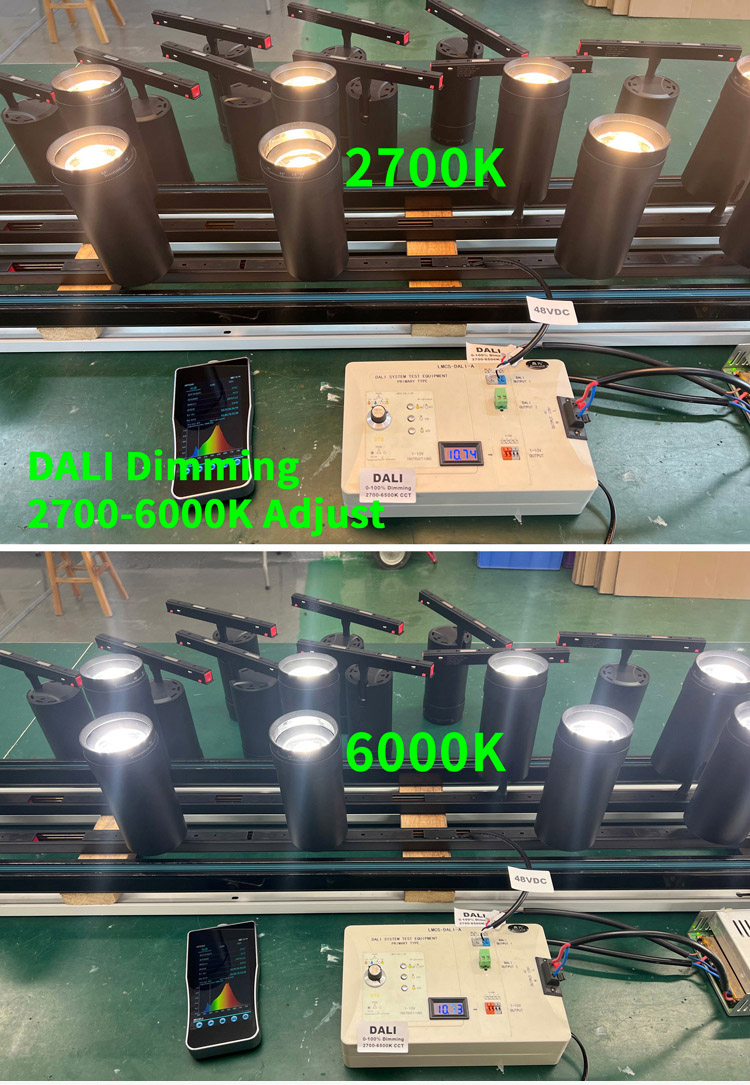

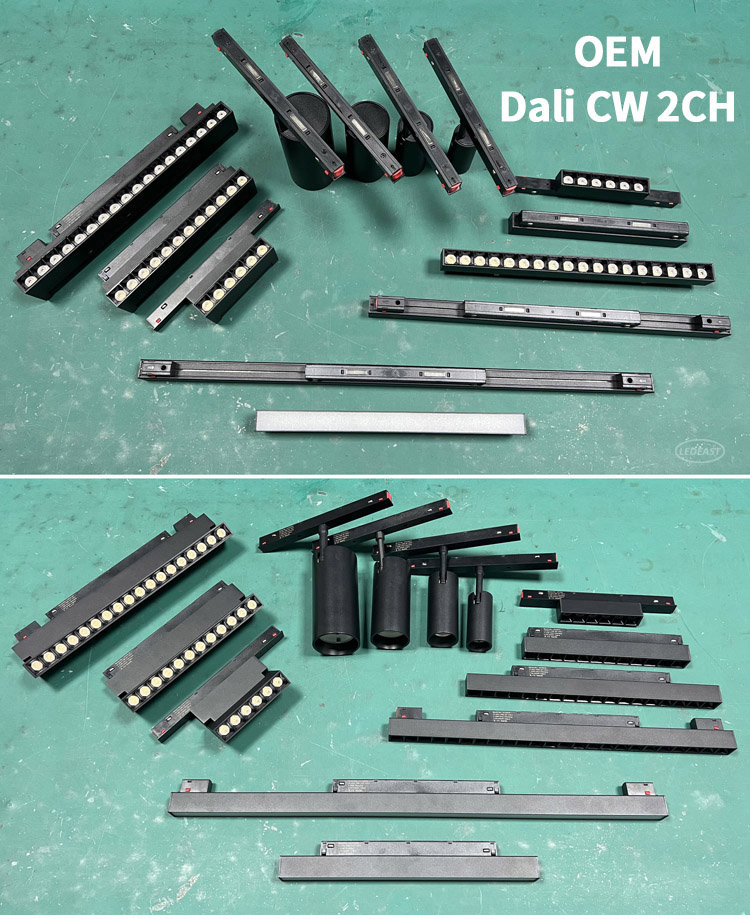

2) All LEDEAST’s track light have non-dimming, DALI dimming, 1~10V dimming, Tuya zigbee smart dimming, local knob dimming, bluetooth dimming etc for choose, support 0~100% brightness and 2700K~6500K color temperature adjustment.
3) LEDEAST provide with free laser marking service with buyer’s logo or brand, and other custom package service.
4) Customizable CRI≥95.

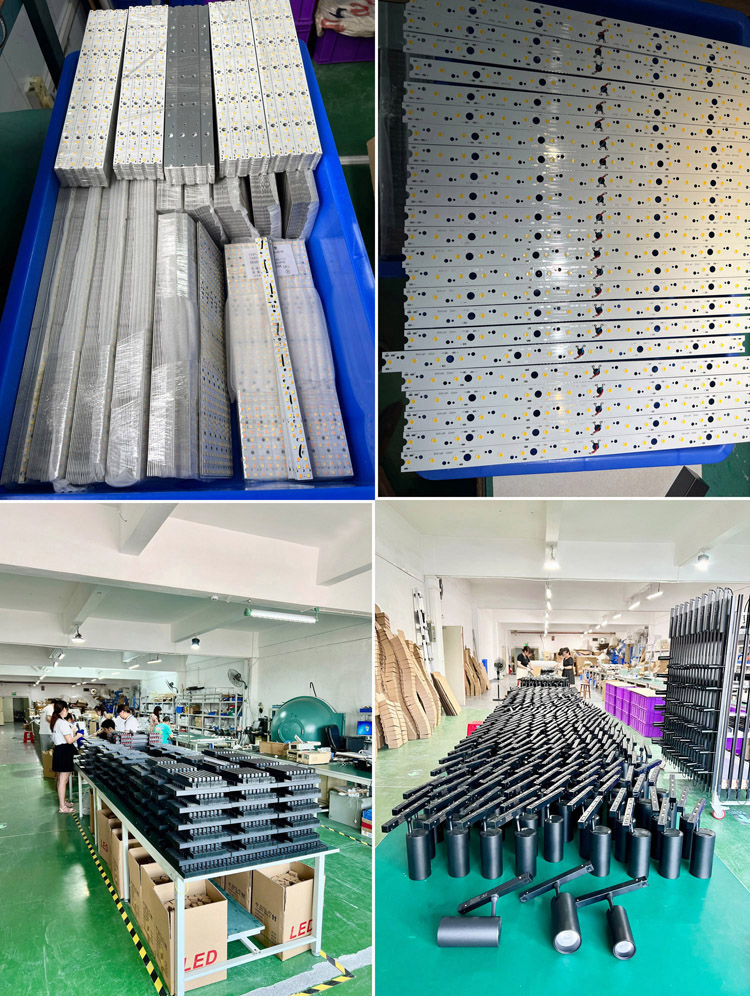

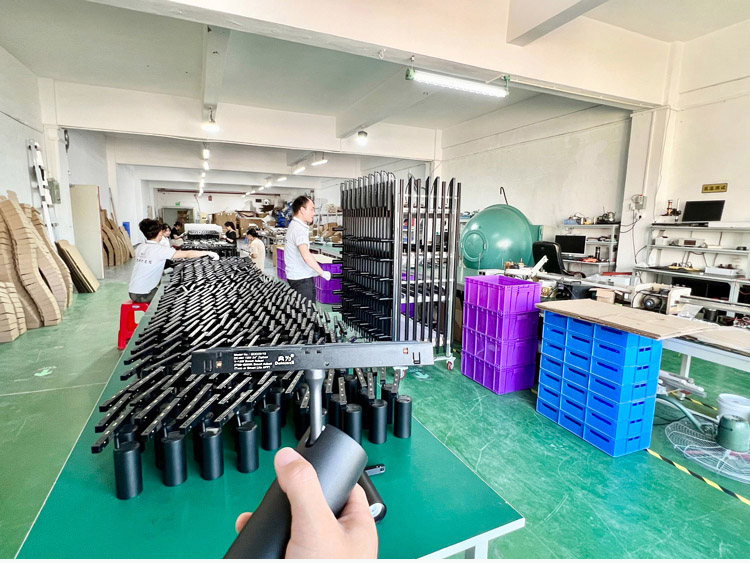

LEDEAST is a professional manufacturer and supplier on the commercial lighting field more than 15 years, we would like to provide with OEM & ODM service for clients all over the world. Any special requirements, don’t hesitate to tell us, LEDEAST will make it happen.
Installation
Low Votage 48V Magnetic suction track floodlight can bring high efficiency, energy saving, comfortable environmental protection, flexible, economical and practical benefits, providing high quality, high efficiency lighting scheme.
LEDEAST's lighting manufacturers are increasingly developing lighting solutions that prioritize user comfort, health, and safety.
Magnet track lighting also is the market trend start from 2019, be more and more popular for modern offices and residential areas with minimalist decoration style. Any doubt, feel free contact us!
