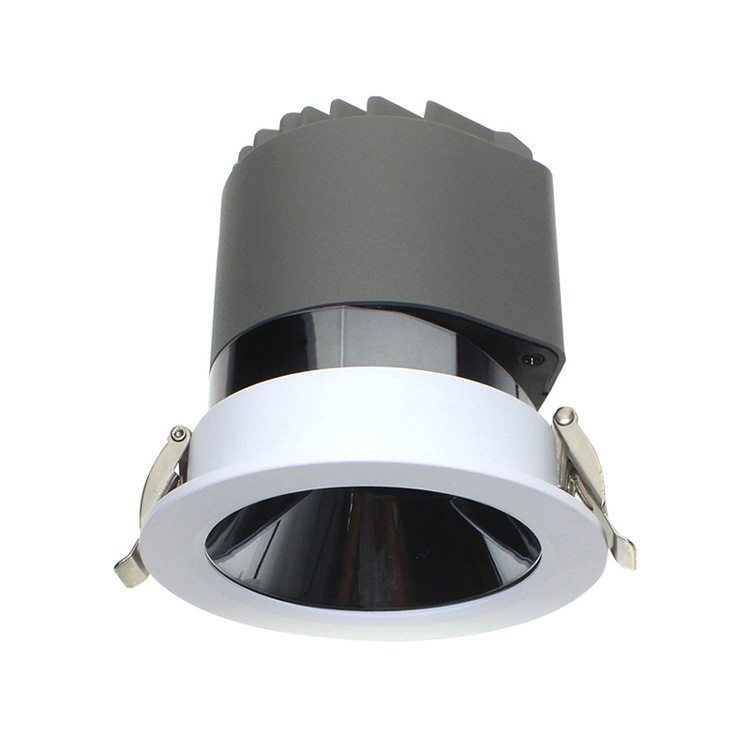

RDS02 Family Anti-Glare LED ceiling downlight
Specifications
We also offer different styles and sizes that can be safely used in a variety of indoor scenarios, achieve more diverse decorative effects, to suit your different needs
| Name | LED ceiling light | |||||
| Supplier | LEDEAST | |||||
| Model | RDS02 | |||||
| Picture |  |
 |
 |
 |
 |
 |
| Power | COB 7W | COB 10W | COB 12W | COB 20W | COB 30W | COB 45W |
| Hole size | Ø60mm | Ø75mm | Ø95mm | Ø120mm | Ø140mm | |

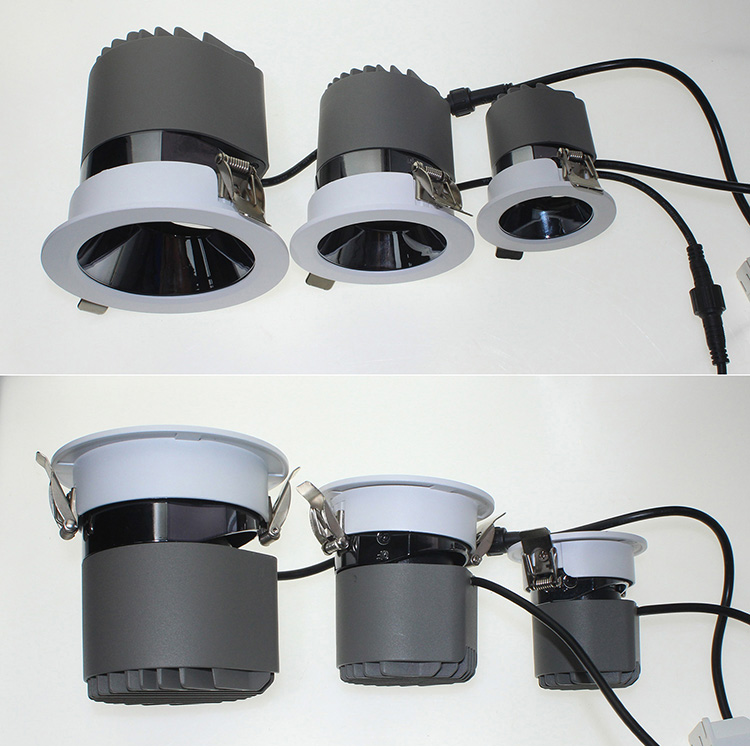

| Size | Ø65*65mm | Ø85*84mm | Ø110*105mm | Ø135*138mm | Ø155*166mm | |
| Lumen Efficiency | 75-105Lm / W | |||||
| CRI | Ra>90 | |||||
| Beam Angle | 15°/24°/38° | |||||
| CCT | 2700 / 3000K / 4000K / 5000K / 6500K | |||||
| Main Material | High Quality Aluminum | |||||
| Heat Dissipating | Behind the COB chip, there is painted with thermal grease with 5.0W/mK heat-conductivity, guarantee a stable thermal conductivity. |
|||||
| Failure Rate | Failure Rate < 2% during 3 years | |||||
| Input Voltage | AC220V, Customizable AC100-240V | |||||
| Other | Brand LOGO on the product can be specified. Normally, the product is NON-Dimming version. Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee / 2.4G Remote Dimming (or Dimming & CCT Adjustable) |
|||||
| Warranty | 3 Years | |||||
Application
LEDEAST RDS02 Family LED ceiling downlight, which has the characteristics of high CRI & good anti-glare & high efficiency, and can save energy costs for users.

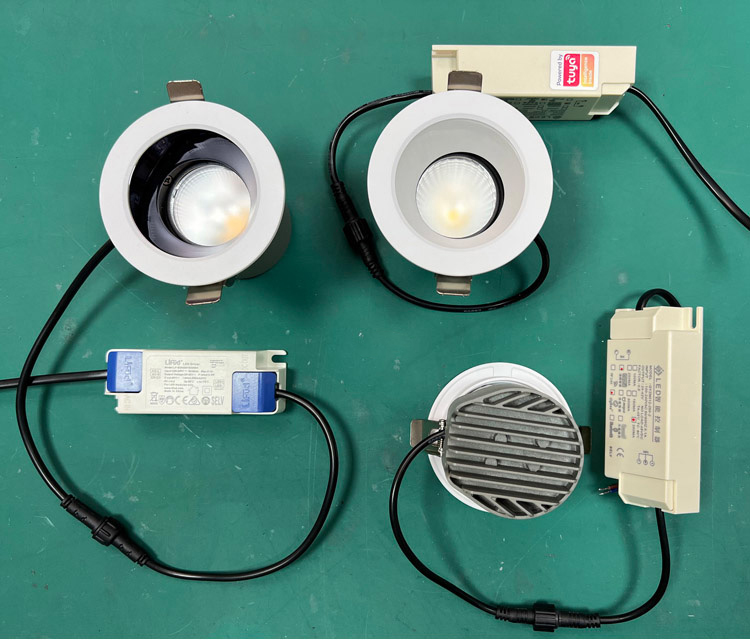

This LED ceiling lights with deep cup and anti-glare design are ideal for indoor lighting applications
Customization
1) Usually, it come with Black and white finish color, other finish colors also be customizable, such as gray/silvery.

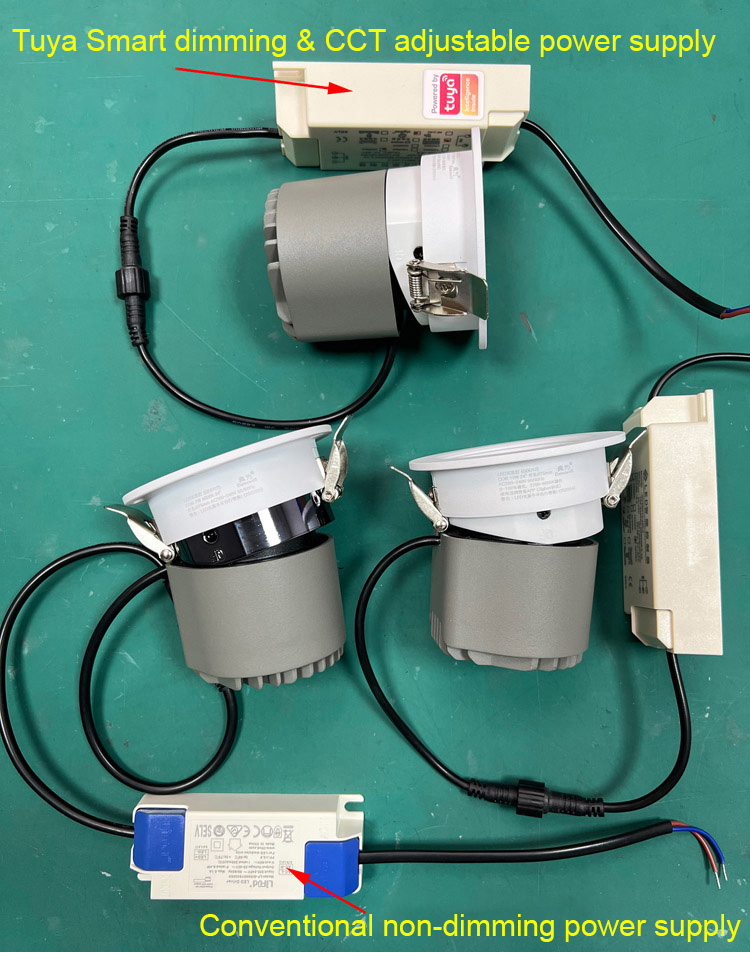

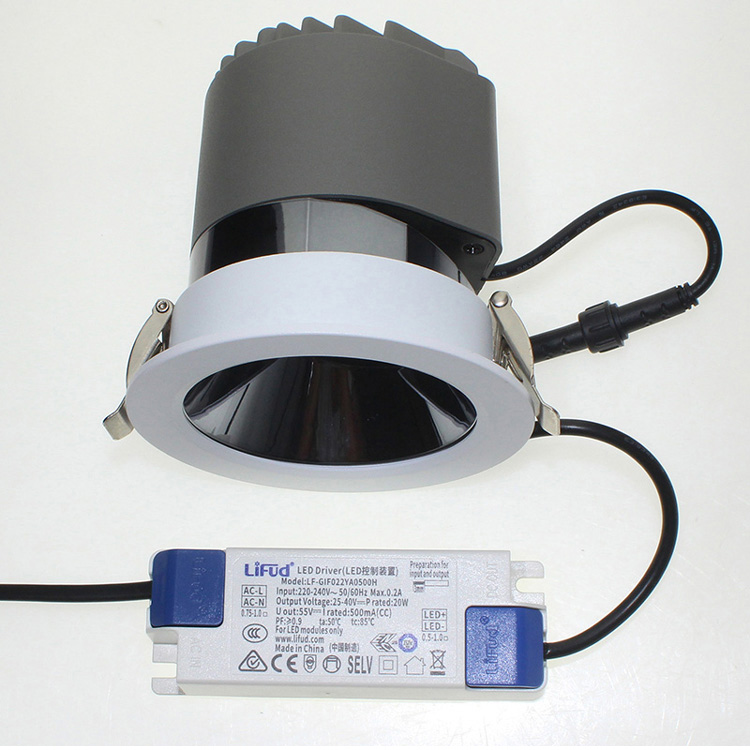

2) AMS LED ceiling downlight come with non-dimming, DALI dimming, 1~10V dimming, Tuya zigbee smart dimming, local knob dimming, bluetooth dimming etc for choose, support 0~100% brightness and 2700K~6500K color temperature adjustment.
3) LEDEAST provide with free laser marking service with buyer’s logo or brand, and other custom package service.
4) Customizable CRI≥95.
LEDEAST is a professional manufacturer and supplier on lighting field more than 15 years, we would like to provide with OEM & ODM service for clients all over the world. Any special requirements, don’t hesitate to tell us, LEDEAST will make it happen
Other
With many years of experience in the development and manufacture of general lighting have made LEDEAST technology one of the most significant innovation and technology drivers in China.
With its solid platform of experience and know-how, LEDEAST technology is not only a manufacturer of lamps but also as a reliable partner for LED technologies in a wide range of lighting applications.
Our main products covers indoor spotlights, track systems, indoor recessed fixtures, indoor recessed fixtures, indoor wall-mounted and wall-recessed luminaries, par Lights, panel Light, Bulbs, LED Strip, LED high bay light, LED flood light, LED canopy light, LED grow light etc.
You can trust for superior quality, innovative technology and superlative service. With me, with light!
