ZF45 Magnet Track Light (Zoomable spot)
Specifications
The zoomable design allows the lamp to adjust the angle and size of the beam by zooming in or out, meeting the lighting needs of different spaces and requirements.
| Name | LED Magnet Track Light (Zoomable spot / Focusing Track Spot Light) | |||
| Supplier | LEDEAST | |||
| Model | ZF45-08 | ZF55-12 | ZF65-18 | ZF75-25 |
| Picture |  |
|||
| Size | Ø45*100mm | Ø55*110mm | Ø65*135mm | Ø75*150mm |
| LED & Power | COB 8W | COB 12W | COB 18W | COB 25W |
| Beam Angle | 10-55° Zoomable | |||
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 20000K | |||
| CRI | CRI>90 (Customizable CRI>95) | |||
| Lumen Efficiency | 70-110 Lm / W | |||
| Input Voltage | DC48V (Customizable DC24V) | |||
| IP Grade | IP20 | |||
| Installation | Compatible with 20# magnetic track rail | |||
| Finish Color | Black / White | |||
| Main Material | High Quality Aluminum | |||
| Heat Dissipating | Behind the COB chip, there is painted with thermal grease with 5.0W/mK heat-conductivity, guarantee a stable thermal conductivity. |
|||
| Light Attenuation | Attenuated 10% during 3 years (Light on 13h/day) | |||
| Failure Rate | Failure Rate < 2% during 3 years | |||
| Other | Brand LOGO on the product can be specified. Normally, the product is NON-Dimming version. Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee / 2.4G Remote Dimming (or Dimming & CCT Adjustable) |
|||
| Certificate | CB / CE / RoHS | |||
| Warranty | 3 Years | |||
Application

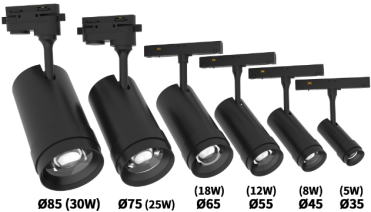

LEDEAST’s ZF45 Magnet Track Light (Focus spot) has a simple and generous appearance and with six sizes to match different objects, make the decoration of the overall space more unified.
ZF45 Family Magnetic Track Light (Focus spot) with adjustable focus adopt high-quality LED lamp beads with high color rendering index and high brightness, which can provide bright and clear lighting effect.
Anyway, The light fixture ZF45 Family be suitable for museums, galleries, retail stores , clubs, showrooms, home decoration, and other public spaces, greatly reduce the inventory of our distributors.
Customization
1) Usually, it come with Black and white finish color, other finish colors also be customizable, such as gray/silvery.

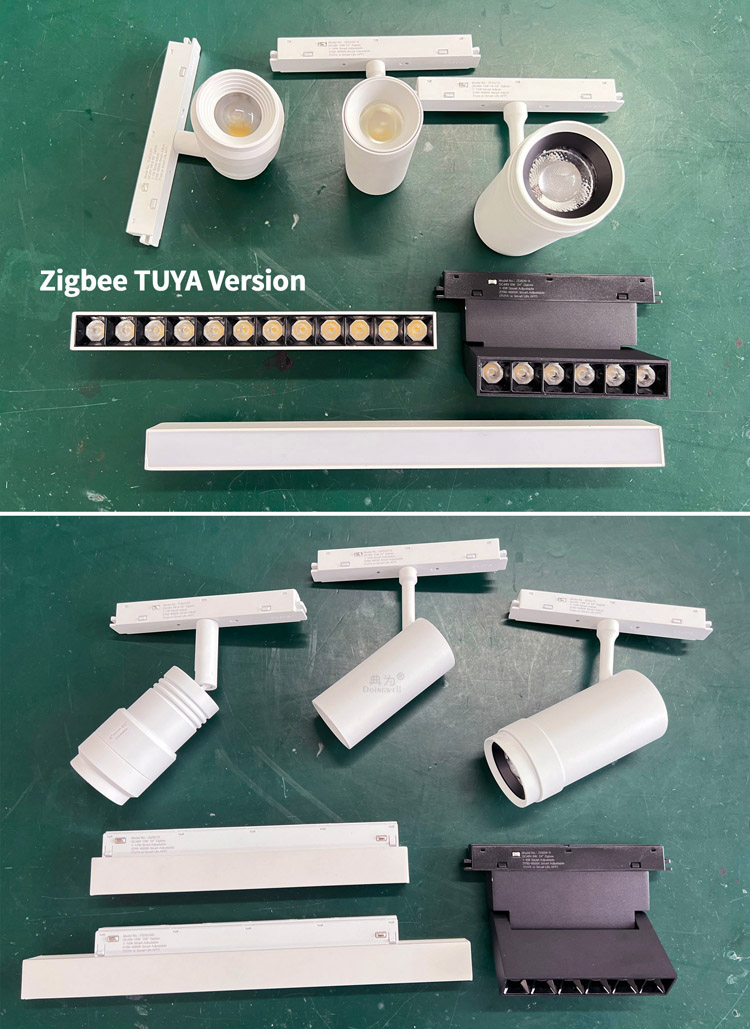

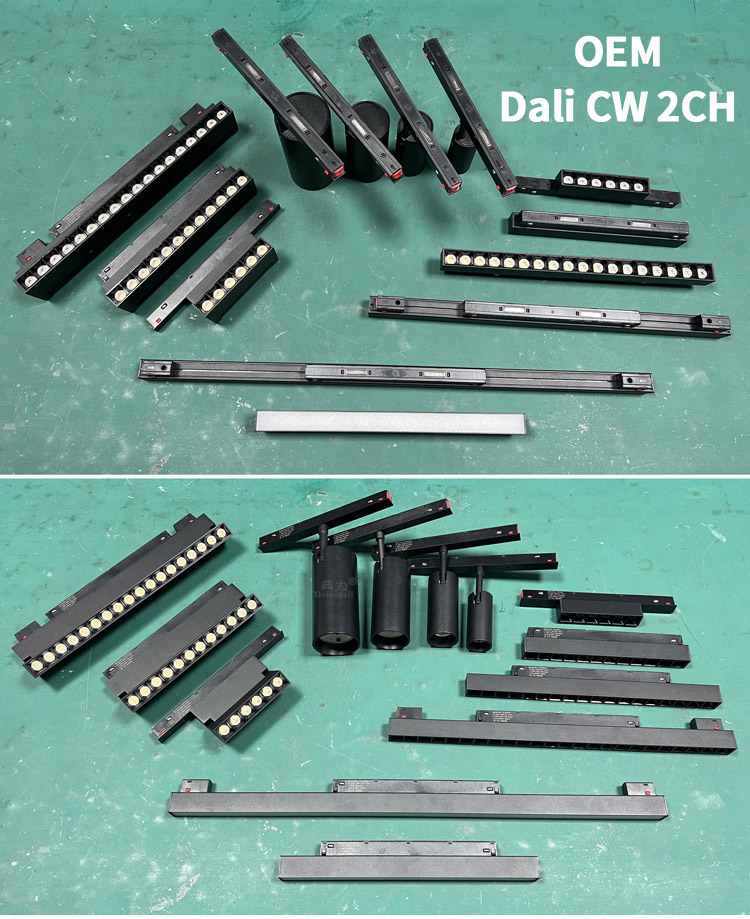

2) ZF45 series focus track light have non-dimming, DALI dimming, 1~10V dimming, Tuya zigbee smart dimming, local knob dimming, bluetooth dimming etc for choose, support 0~100% brightness and 2700K~6500K color temperature adjustment.
3) LEDEAST provide with free laser marking service with buyer’s logo or brand, and other custom package service.
4) Customizable CRI≥95.
LEDEAST is a professional manufacturer and supplier on the commercial lighting field more than 15 years, we would like to provide with OEM & ODM service for clients all over the world. Any special requirements, don’t hesitate to tell us, LEDEAST will make it happen.
Other
With many years of experience in the development and manufacture of general lighting have made LEDEAST technology one of the most significant innovation and technology drivers in China.
With its solid platform of experience and know-how, LEDEAST technology is not only a manufacturer of lamps but also as a reliable partner for LED technologies in a wide range of lighting applications.
Our main products covers indoor spotlights, track systems, indoor recessed fixtures, indoor recessed fixtures, indoor wall-mounted and wall-recessed luminaries, par Lights, panel Light, Bulbs, LED Strip, LED high bay light etc.
You can trust for superior quality, innovative technology and superlative service. With me, with light!
