LEDEAST TL22 Family LED Track Light Head
Specifications
We also offer different styles and sizes that can be safely used in a variety of indoor scenarios to suit your different needs
| Name | LED Track Light | |||
| Supplier | LEDEAST | |||
| Model | TL22-7 | TL22-15 | TL22-25 | TL22-30 |
| Picture |  |
 |
 |
 |
| Power | COB 7W Ra>90(95) | COB 15W Ra>90(95) | COB 25W Ra>90(95) | COB 30W Ra>90(95) |
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 20000K | |||
| Adapter | Customizable: 2-wire / 3-wire / 4-wire(3-Phase) track light adapter (or power driver box), and surface-mounted-base. |
|||
| Beam Angle | 24º (Customizable: 15º or 36º) | |||
| Finish Color | Black / White | |||
| Lumen Efficiency | 70-110 lm / w | |||
| Main Material | High Quality Aluminum | |||
| Heat Dissipating | Behind the COB chip, there is painted with thermal grease with 5.0W/mK heat-conductivity, guarantee a stable thermal conductivity. |
|||
| Light Attenuation | Attenuated 10% during 3 years (Light on 13h/day) | |||
| Failure Rate | Failure Rate < 2% during 3 years | |||
| Input Voltage | AC220V, Customizable AC100-240V | |||
| Dimming Way | Brand LOGO on the product can be specified. Normally, the product is NON-Dimming version. Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee / 2.4G Remote Dimming (or Dimming & CCT Adjustable) |
|||
| Warranty | 3 Years | |||
Customization

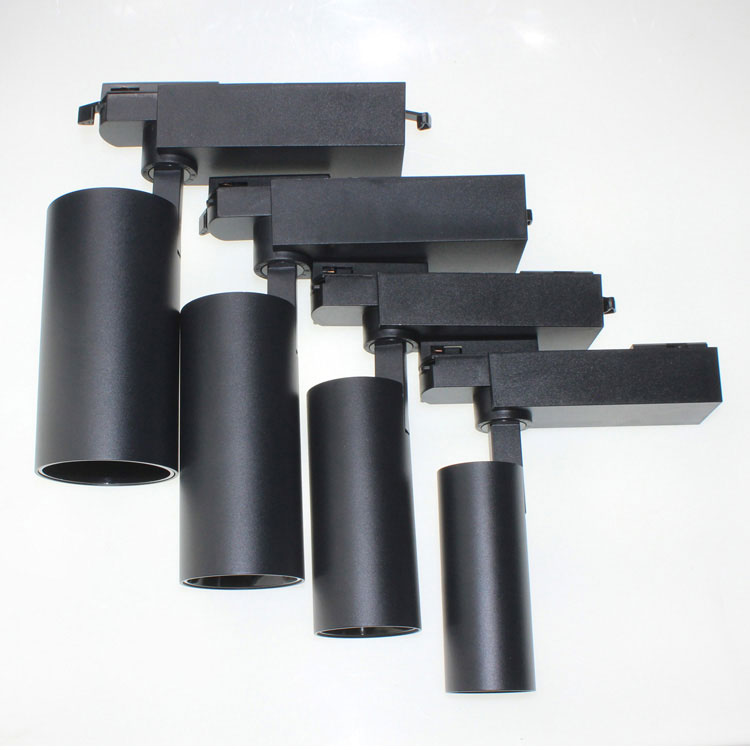

1) Usually, it come with Black and white finish color, other finish colors also be customizable, such as gray/silvery.
2) TL22 series focus track light have non-dimming, DALI dimming, 1~10V dimming, Tuya zigbee smart dimming, local knob dimming, bluetooth dimming etc for choose, support 0~100% brightness and 2700K~6500K color temperature adjustment.
3) LEDEAST provide with free laser marking service with buyer’s logo or brand, and other custom package service.
4) Customizable CRI≥95.
LEDEAST is a professional manufacturer and supplier on the commercial lighting field more than 15 years, we would like to provide with OEM & ODM service for clients all over the world. Any special requirements, don’t hesitate to tell us,LEDEAST will make it happen.
Due to different specifications, the following products may have slight differences.
Other
With many years of experience in the development and manufacture of general lighting have made LEDEAST technology one of the most significant innovation and technology drivers in China.
With its solid platform of experience and know-how, LEDEAST technology is not only a manufacturer of lamps but also as a reliable partner for LED technologies in a wide range of lighting applications.
Our main products covers indoor spotlights, track systems, indoor recessed fixtures, indoor recessed fixtures, indoor wall-mounted and wall-recessed luminaries, par Lights, panel Light, Bulbs, LED Strip, LED high bay light etc.
You can trust for superior quality, innovative technology and superlative service. With me, with light!
