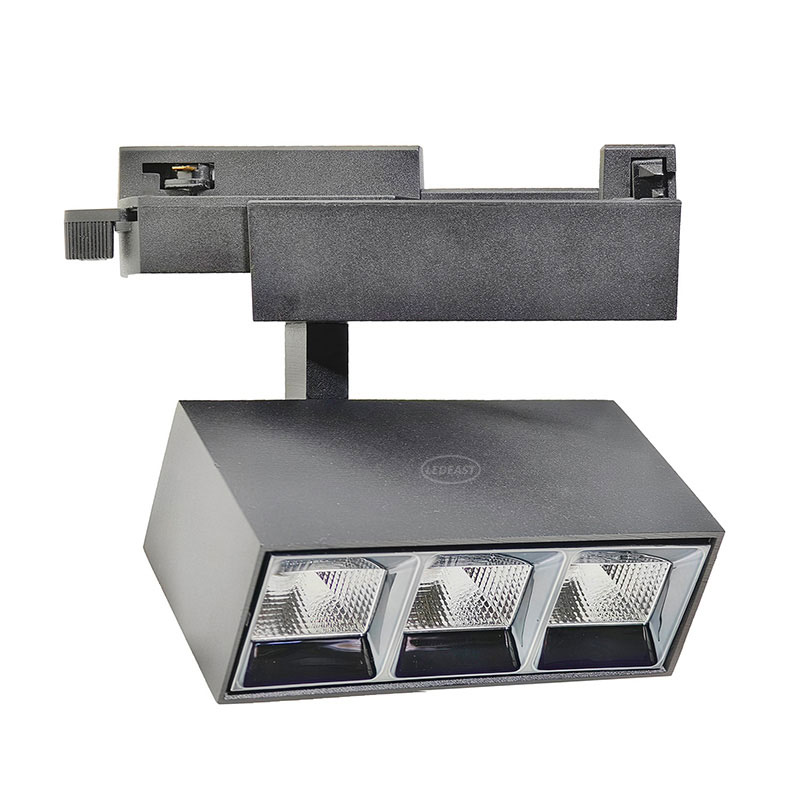

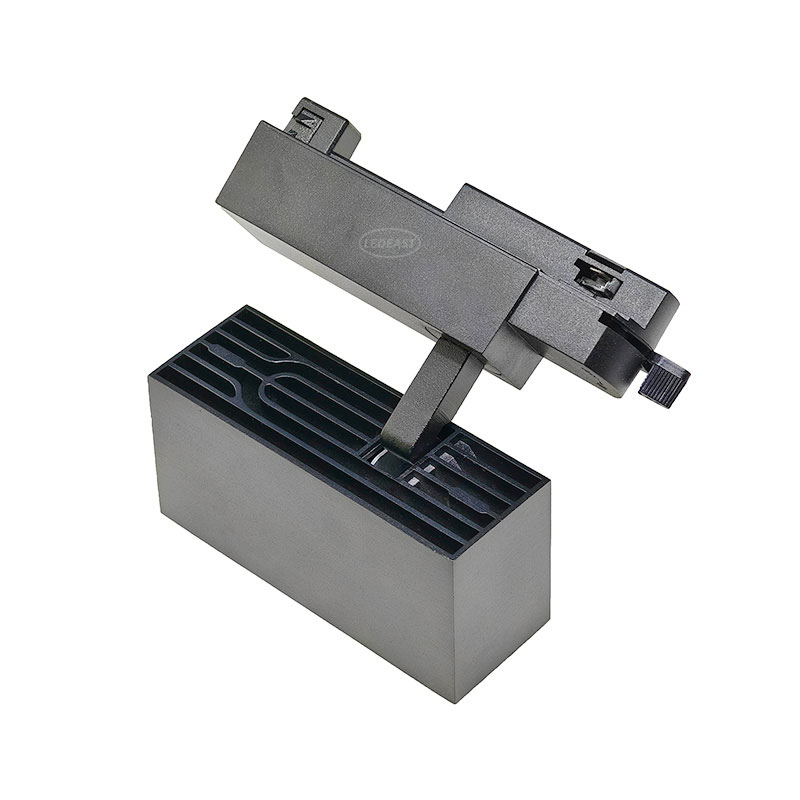

LEDEAST TL28-F AC220V Square Track Light Wall Washer
| Name | LED Track Light (Wallwasher) | ||||
| Supplier | LEDEAST | ||||
| Model | TL28-F10 | TL28-F15 | TL28-F20 | TL28-F25 | TL28-F30 |
| Picture |  |
||||
| Power | COB 10W | COB 15W | COB 20W | COB 25W | COB 30W |

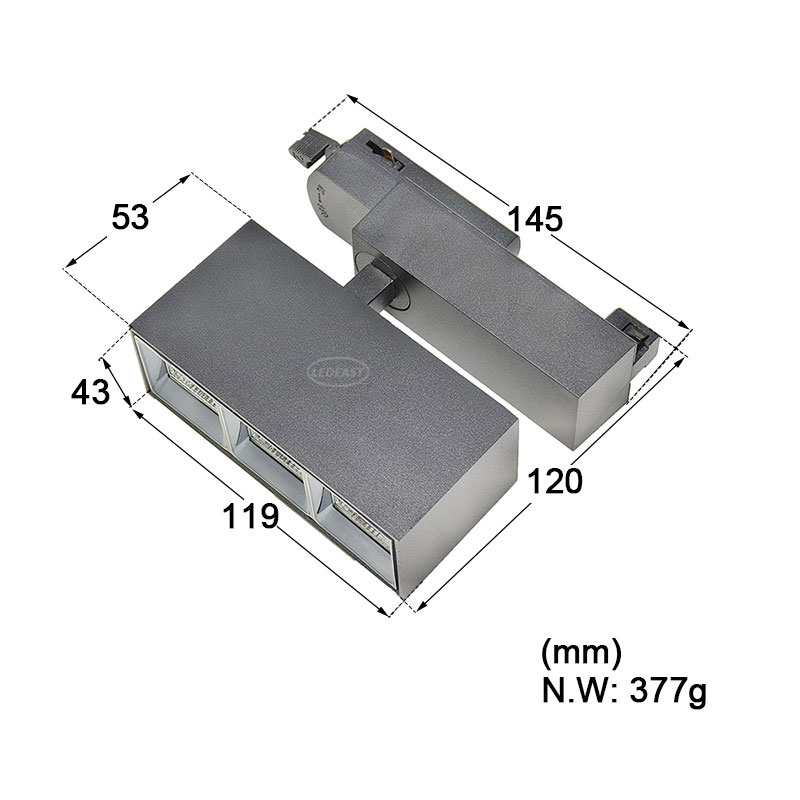

| Size | 82*122*45mm | 120*122*45mm | 158*122*45mm | 198*122*45mm | 236*122*45mm |
| Beam Angle | 30*70° Wallwasher | ||||
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K / 20000K / CW2700-6000K | ||||
| Adapter | Customizable: 2-wire / 3-wire / 4-wire(3-Phase) track light adapter (or power driver box), and surface-mounted-base. |
||||
| Finish Color | Black / White | ||||
| Lumen Efficiency | 70-110 lm / w | ||||
| Main Material | High Quality Aluminum | ||||
| Heat Dissipating | Behind the COB chip, there is painted with thermal grease with 5.0W/mK heat-conductivity, guarantee a stable thermal conductivity. |
||||
| Light Attenuation | Attenuated 10% during 3 years (Light on 13h/day) | ||||
| Failure Rate | Failure Rate < 2% during 3 years | ||||
| Input Voltage | AC220V, Customizable AC100-240V | ||||
| Other | Brand LOGO on the product can be specified. Normally, the product is NON-Dimming version. Customizable: 0-10V (1-10V) / Dali / TRIAC / App Smart / ZigBee / 2.4G Remote Dimming (or Dimming & CCT Adjustable) |
||||
| Warranty | 3 Years | ||||
The LEDEAST TL28-F is a high-performance square wall washer track light designed for clean, even wall lighting. With a wide CCT range and multiple dimming options, it suits both professional and creative lighting needs in museums, galleries, and high-end commercial spaces.
Key Features:
-
Professional Wall Washing Effect
The 30×70° beam angle provides smooth and uniform wall lighting, perfect for highlighting artwork, displays, and architectural details. -
Multiple Size Options
Available in five lengths (82mm to 236mm), this light fits different track system sizes and layout needs. -
Wide CCT Range
Choose from color temperatures between 2700K and 20000K, or opt for a tunable CCT model (2700K–6000K) for flexible lighting scenes. -
Smart and Manual Dimming Options
Compatible with 0-10V, DALI, TRIAC, ZigBee, 2.4G Remote, or App control—giving you full brightness and color temperature control. -
Durable and Stylish
Made from high-quality aluminum for excellent heat dissipation, with a sleek black or white finish that blends into any modern interior.
