Non Dimming Slim Magnetic LED Drive AC180V to 265V

Short Description:

Slim Magnetic LED Drive AC180V to 265V

Linear Non dimming Led Drive LEDEAST CH-48V-80W

Input Voltage: AC180-265V
Output Voltage: DC48V
Output Current: 1.6A / 3.2A
Dimming Type: Non
Efficiency: >90%
Power Factor: >0.9 (No Flicker)
Working ENV.: -20 ~ +45°C / 20% ~ 90% RH
Storage ENV.: -20 ~ +70C° / 10% ~ 90% RH
MTBF: 50000 hours Control
Mode: APP (Group / Single) / Remote /

Here are the features of the Magnetic Light Power Supply

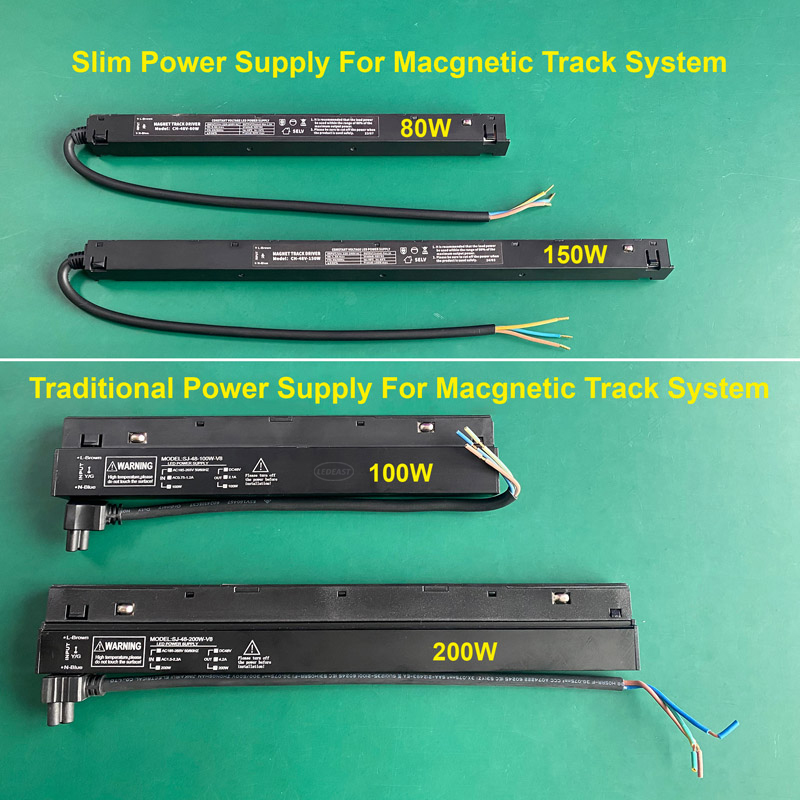

The LED driver boasts a slim and compact design, making it suitable for installation in areas with limited space. Its slender profile ensures ease of installation and minimal impact on the overall aesthetics of the lighting system.Used for magnetic track lights with power ratings of 80W or 150W. It converts AC power input of 180-265V to DC output of 48V. This Slim Magnetic LED Drive is designed for linear non-dimming LED lights and serves as a drive for the connected lighting system

Product Detail

Product Tags

CH-48V (6)
Name AC180-265V To DC48V Slim Power Supply
Supplier LEDEAST
Model CH-48V-80W CH-48V-150W
DC Output Current 1.6A 3.2A
Size 240*18*19mm 320*18*19mm
Dimming NON Dimming
DC Output DC Voltage: 48V DC
Line Regulation: ±2%
Load Regulation: ±2%
Input Input Voltage Range:185V-265V
Rated Voltage: 220VAC
Efficiency: >90%
Protection Short-circuit: Hiccup mode
No-load protection
Negative reverse connect protection
Environment Working Temp.: -20 ~ +45C°
Working Humidity: 20 ~ 90% RH, non-condensing
Storage Temp.: -20 ~ +70C°
Storage Humidity: 10% ~ 90% RH
Others IP Rate: IP22
MTBF: 50000 hours
Warranty 5 Years

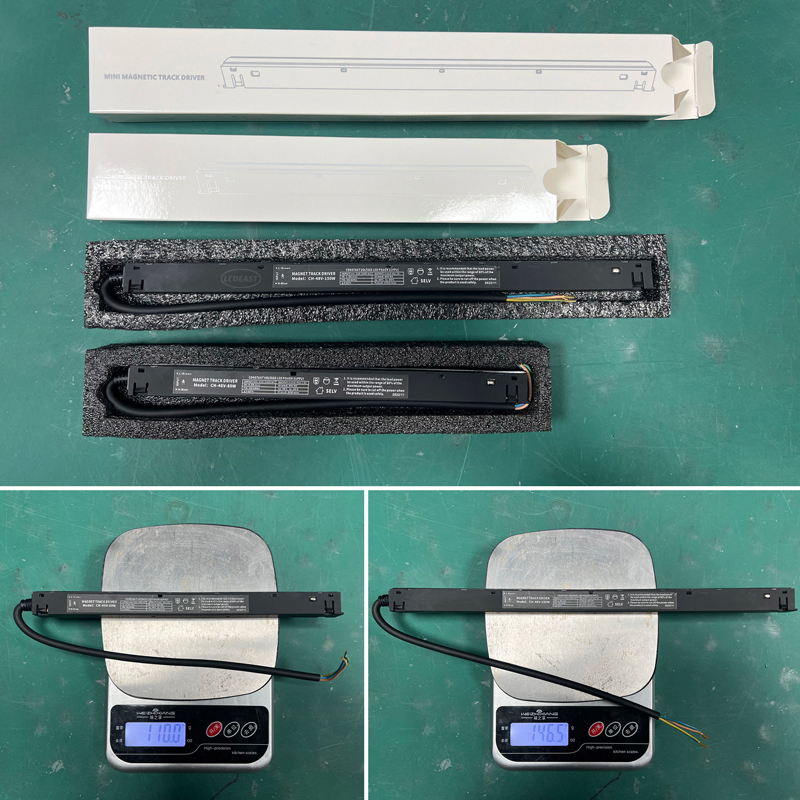

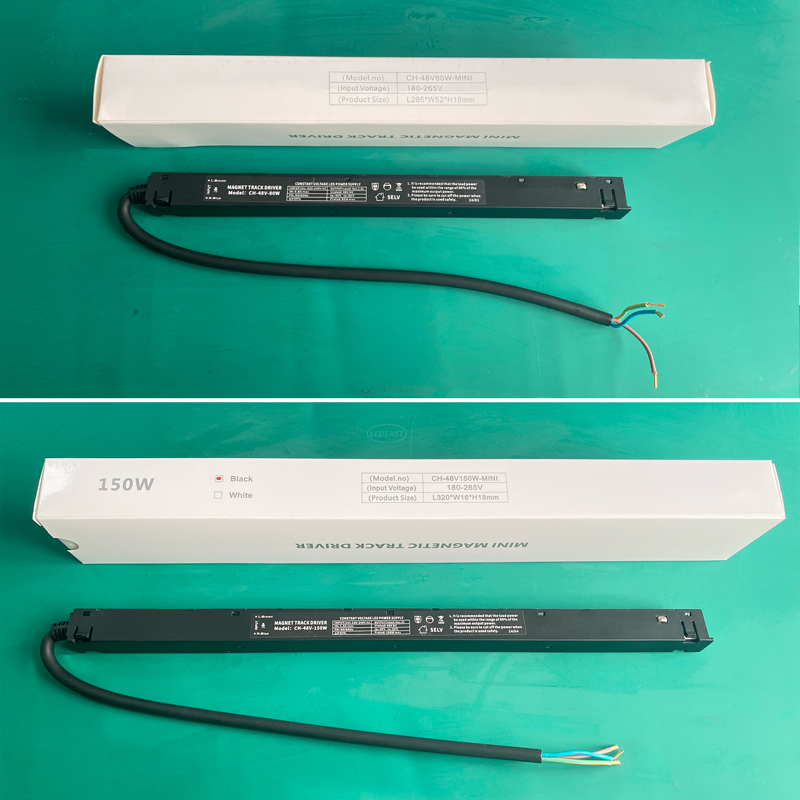

CH-48V (6) CH-48V (5)CH-48V (4) CH-48V (3) CH-48V (1) CH-48V (2)CH-48V (5)

With many years of experience in the development and manufacture of general lighting have made LEDEAST technology one of the most significant innovation and technology drivers in China.

With its solid platform of experience and know-how, LEDEAST technology is not only a manufacturer of lamps but also as a reliable partner for LED technologies in a wide range of lighting applications.

Our main products covers indoor spotlights, track systems, indoor recessed fixtures,  indoor wall-mounted and wall-recessed luminaries, par Lights, panel Light, Bulbs, LED Strip, LED high bay light etc.

You can trust for superior quality, innovative technology and superlative service. With me, with light!
