Linear Non Dimming Magnetic Track Light Power Supply AC to DC48V

Short Description:

Magnetic Light Power Supply AC to DC48V Integrated

Linear Non dimming Led Drive LEDEAST 48-100W-V8

Input Voltage: AC180-265V
Output Voltage: DC48V
Output Current: 2A / 4A
Dimming Type: Non
Efficiency: >90%
Power Factor: >0.9 (No Flicker)
Working ENV.: -20 ~ +45°C / 20% ~ 90% RH
Storage ENV.: -20 ~ +70C° / 10% ~ 90% RH
MTBF: 50000 hours Control Mode: APP (Group / Single) / Remote /

Here are the features of the Magnetic Light Power Supply

Used for magnetic track lights with power ratings of 100W ro 200W. It converts AC power input of 180-265V to DC output of 48V. This power supply is designed for linear non-dimming LED lights and serves as a drive for the connected lighting system

Product Detail

Product Tags

Led Drive Power Supply (2)
Name AC100-240V To DC48V Power Supply
Supplier LEDEAST
Model SJ-48-100W SJ-48-200W-V8
DC Output Current 2A 4A
Size 255*23*46mm 275*23*46mm
Dimming NON Dimming
DC Output DC Voltage: 48V DC
Line Regulation: ±2%
Load Regulation: ±2%
DC Input DC Input Voltage Range: 48VDC ±3%
DC Rated Voltage: 48VDC
Efficiency: >90%
Protection Short-circuit: Hiccup mode
No-load protection
Negative reverse connect protection
Environment Working Temp.: -20 ~ +45C°
Working Humidity: 20 ~ 90% RH, non-condensing
Storage Temp.: -20 ~ +70C°
Storage Humidity: 10% ~ 90% RH
Others IP Rate: IP22
MTBF: 50000 hours
Warranty 5 Years

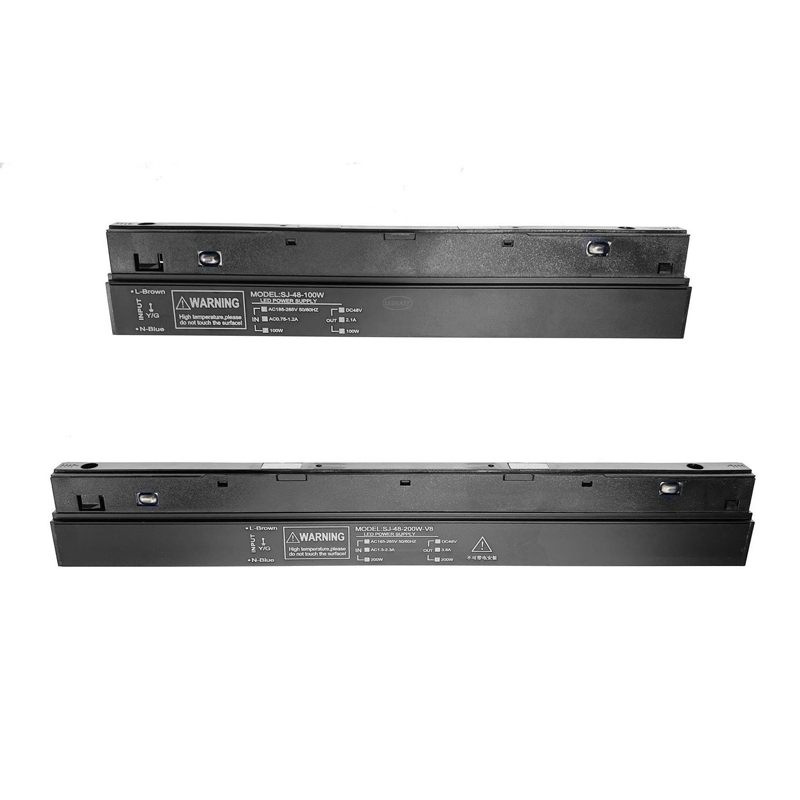

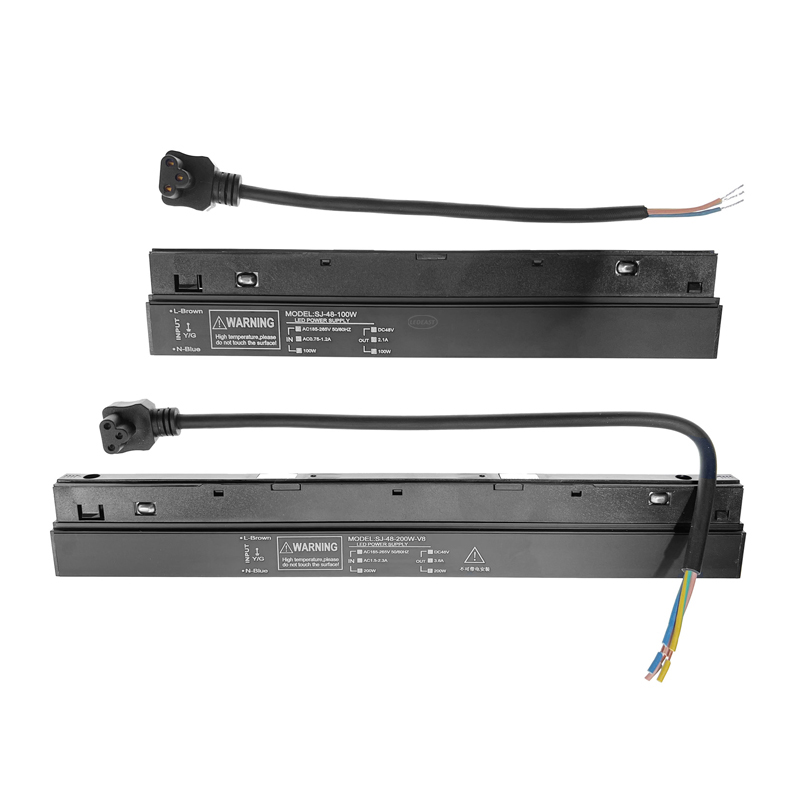

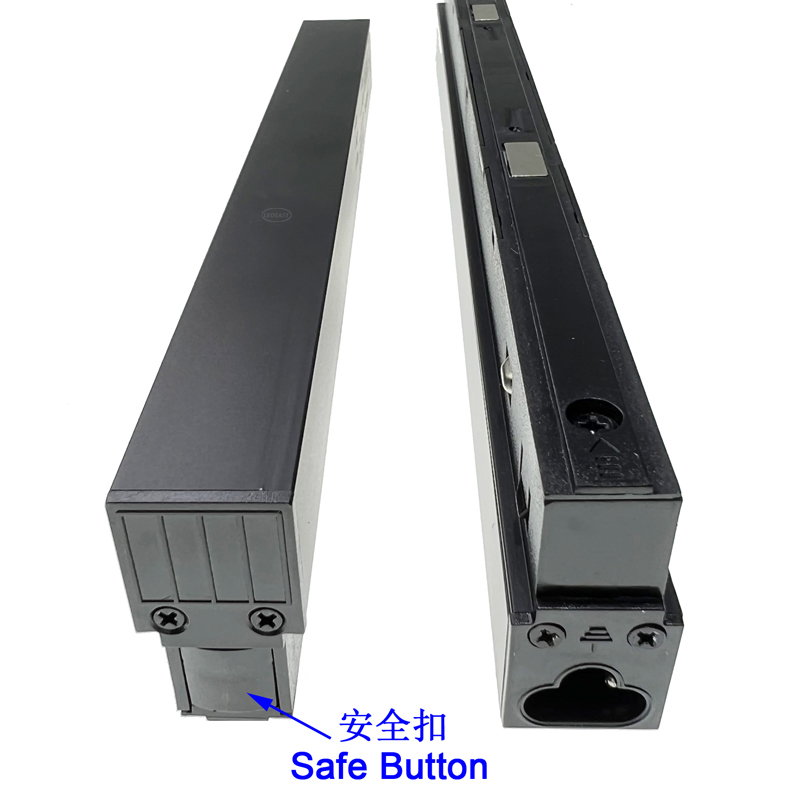

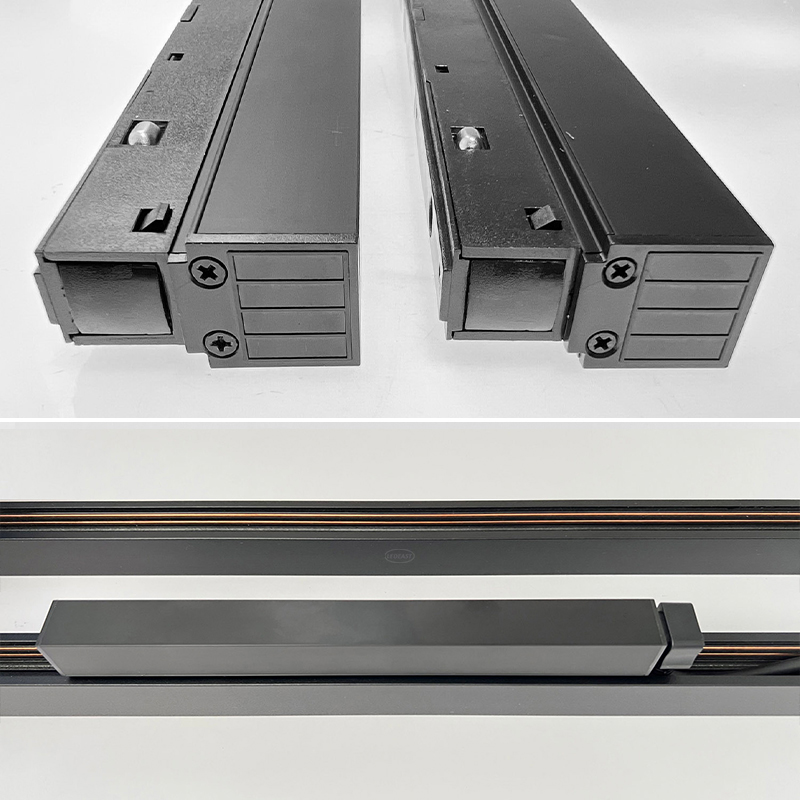

Led Drive Power Supply (3) Led Drive Power Supply (1)Led Drive Power Supply (5) Led Drive Power Supply (4)

With many years of experience in the development and manufacture of general lighting have made LEDEAST technology one of the most significant innovation and technology drivers in China.

With its solid platform of experience and know-how, LEDEAST technology is not only a manufacturer of lamps but also as a reliable partner for LED technologies in a wide range of lighting applications.

Our main products covers indoor spotlights, track systems, indoor recessed fixtures,  indoor wall-mounted and wall-recessed luminaries, par Lights, panel Light, Bulbs, LED Strip, LED high bay light etc.

You can trust for superior quality, innovative technology and superlative service. With me, with light!
