Rail For Magnetic Track Light Low Voltage Track Rail System LEDEAST TSMN

Short Description:

A low voltage track rail system for magnetic track lights typically consists of a track rail and magnetic track heads. The track rail serves as the main power supply and mounting structure for the track heads.

When selecting a rail for your low voltage track rail system, there are a few factors to consider:

Length: Determine the desired length of the track rail based on your lighting needs and the available space. Some rail systems come in fixed lengths, while others can be customized and cut to the desired length.

Mounting options: Consider the mounting options available for the track rail. There are surface-mounted rails that can be directly installed on ceilings or walls, as well as recessed rails that can be flush-mounted or recessed into the ceiling for a more seamless look.

Compatibility: Ensure that the track rail is compatible with your magnetic track heads. Check the specifications or consult with the manufacturer to verify compatibility.

Material and finish: Look for a rail that is made of durable and high-quality materials, such as aluminum or steel, to ensure longevity. Additionally, select a finish that complements your space’s aesthetics, such as white, black, or silver.

Voltage: Confirm that the track rail is designed for low voltage applications, typically 24V or 48V, depending on the specific low voltage system you are using.

Name : Rail For Magnetic Track
Supplier : LEDEAST
Model : TSMN
Installation : Recessed
Finish Color : Black / White
Approve : CB / CE / RoHS
Length : 0.3m / 1m / 1.5m / 2m / 3m / 4m be free customized
Warranty : 10 Years
Rail For Magnetic Track Rail System

Product Detail

Product Tags

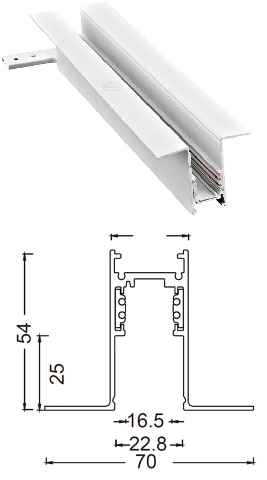

Name Magnetic Track Rail System
Supplier LEDEAST
Model TSMN
Conductor Material Pure Red Copper (Ø2.3mm)
Insulation Material High-Density PVC
Body Material 1.8mm Thick Aluminum (High Hardness)
Max Load 16A
IP Grade IP20
Installation Recessed
Surface Treatment Double Baking Paint
Finish Color Black / White / Silver
Approve CB / CE / RoHS
Length 0.3m / 1m / 1.5m / 2m / 3m / 4m
be free customized
Packing Stronger Packaging Be Customized
Warranty 10 Years
Shell Material High Quality Aluminum (High Density, High Hardness)
Couplers In default, Feeder & End cap & Mounting Hardware are NOT included.
Optional Couplers:Straight coupler (I) / 90° coupler (L) / T coupler (T) / X coupler (X) / Flexible coupler / Hang Rope / End Feeder & Cup, etc.
